Description
MeshPack analyses all Static Mesh Actors and packs them into instances when the game is packaged. No need to manually combine actors while you are working on your game.
It works with World Partition and normal levels, making your workflow nondestructive and highly optimized.
MeshPack also re-packs Blueprints, Packed Level Actors and more. This further optimizes your game regardless of your workflow. Works with World Partition, Data Layers, Custom Primitive Data, Level Instances, PLA, Blueprints preserving mesh settings and more. Further details in the docs link below.
MeshPack doesn’t currently support meshes with prebuilt static lighting. I want to support this, but unsure if it’s technically possible at this point.
Latest update: Version 2.0
- Reworked the plugin from the ground up to more robust and handle edge cases better
- Missing usage flags on materials now gives a warning in the Output log instead of showing up gray in the packaged game
- Fixed an issue with PLAs having ISMs marked as movable
- Sorted the components so that transforms close together ends up in the same ISM
- Physics settings are now copied from the original mesh to the ISM
- Meshes with custom vertex colors are now correctly ignored
Example cases
The Matrix Awakens – City Sample Project
Large open world level with thousands of meshes. The technical demo also puts previously showcased UE5 features Nanite and Lumen through their paces. In a dense, open-world city environment.
MeshPack stats:
- Actors reduced from 111,878 to 37,260
- Components reduced from 1,229,496 to 535,085

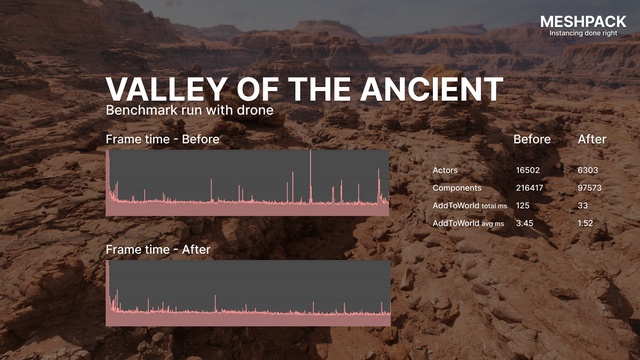

Valley of the Ancient
Large open world level with thousands of meshes. Used to showcase UE 5.0 with World Partition and Packed Level Actors.
MeshPack stats:
- Actors reduced from 16,502 to 6,303
- Components reduced from 216,417 to 97,573

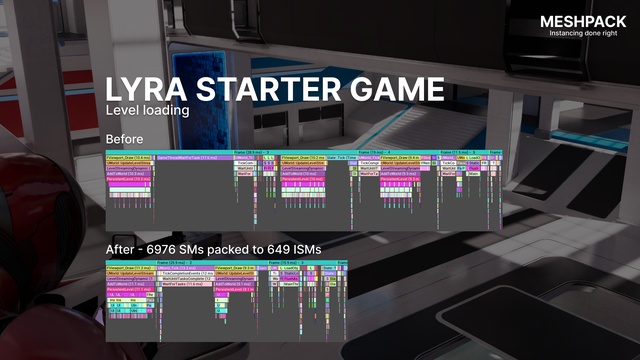

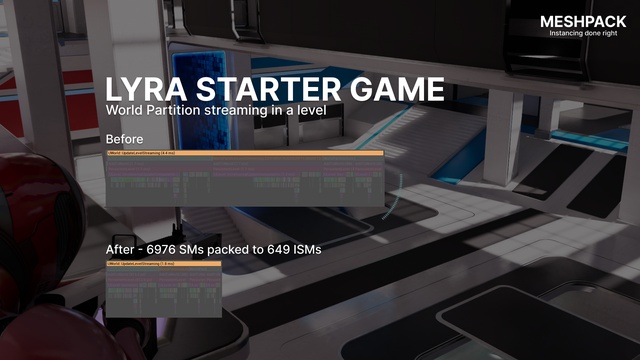

Lyra Starter Game
Medium size action game project optimized as a arena shooter. Uses static mesh actors mostly for floors and walls.
MeshPack stats:
- Actors reduced from 4,507 to 1,339
- Components reduced from 6,163 to 3,506
Local benchmark level
Large open world level with over 200,000 StaticMeshActors
MeshPack stats:
- Actors reduced from 214,631 to 1,004
- Components reduced from 215,114 to 2,745
Latest Documentation: https://drive.google.com/file/d/1VYouZISleYcijjHK8W8JgCyYw-JtuBnt/view
