Easy Soft Outlines

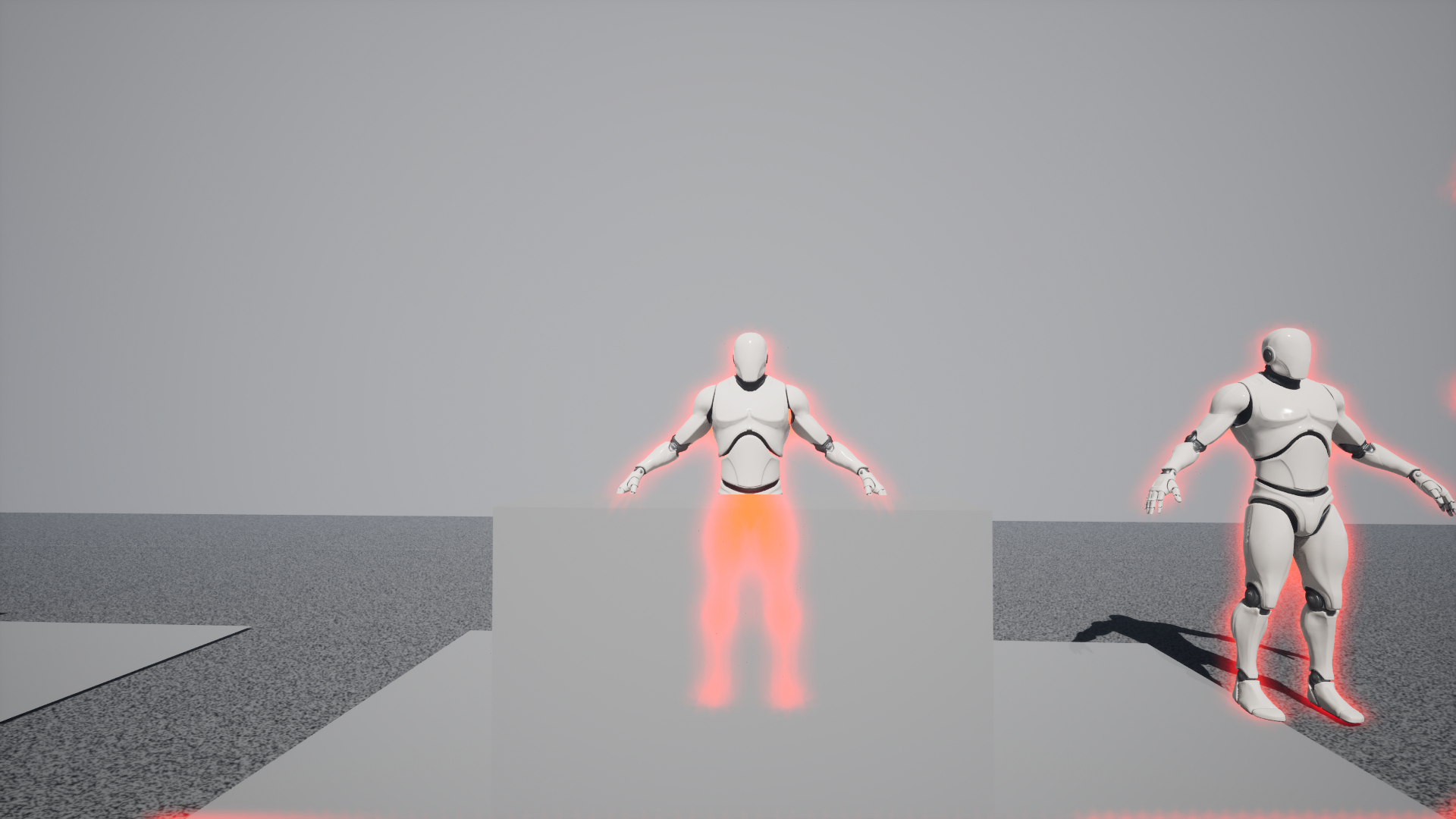

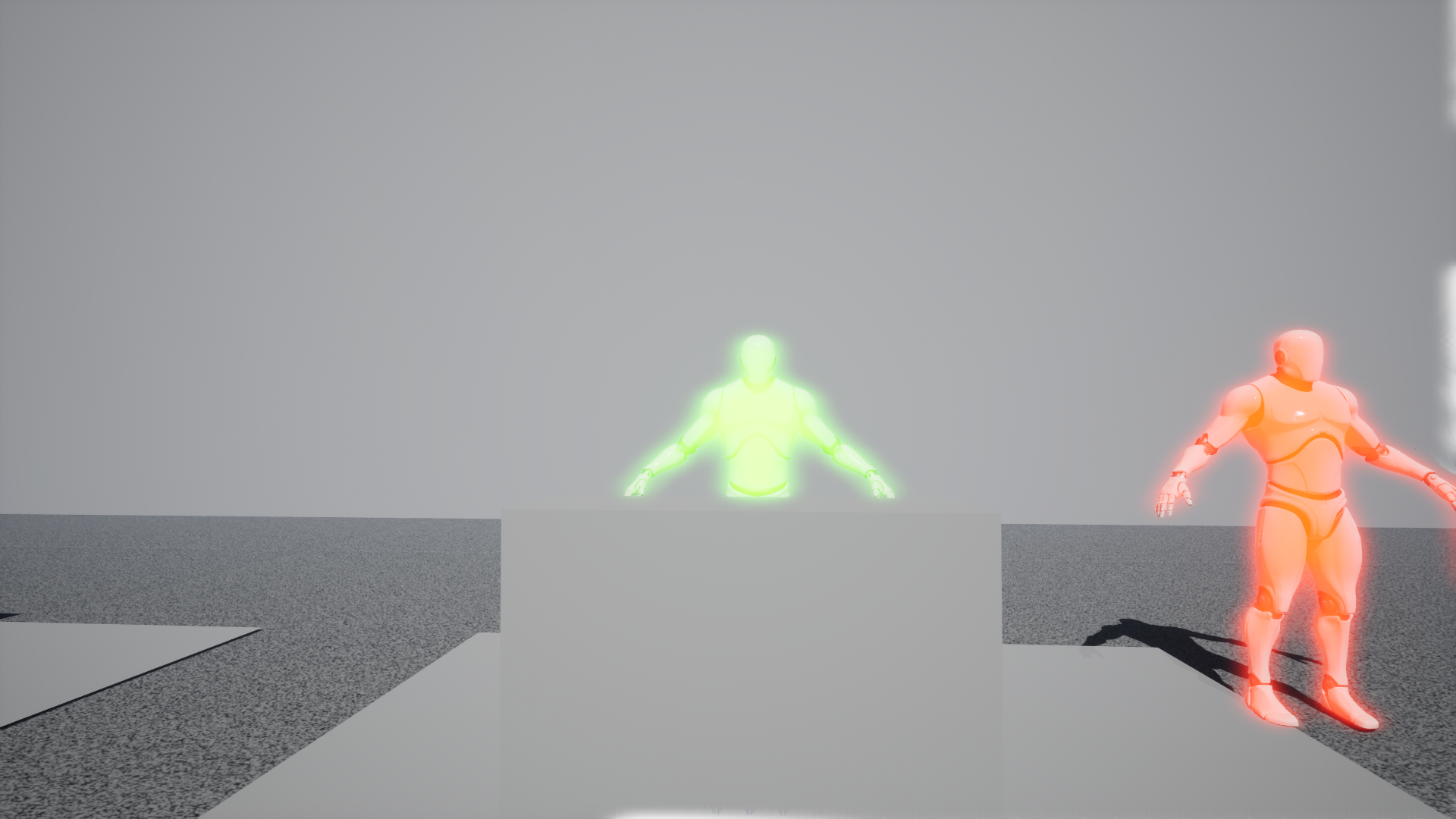

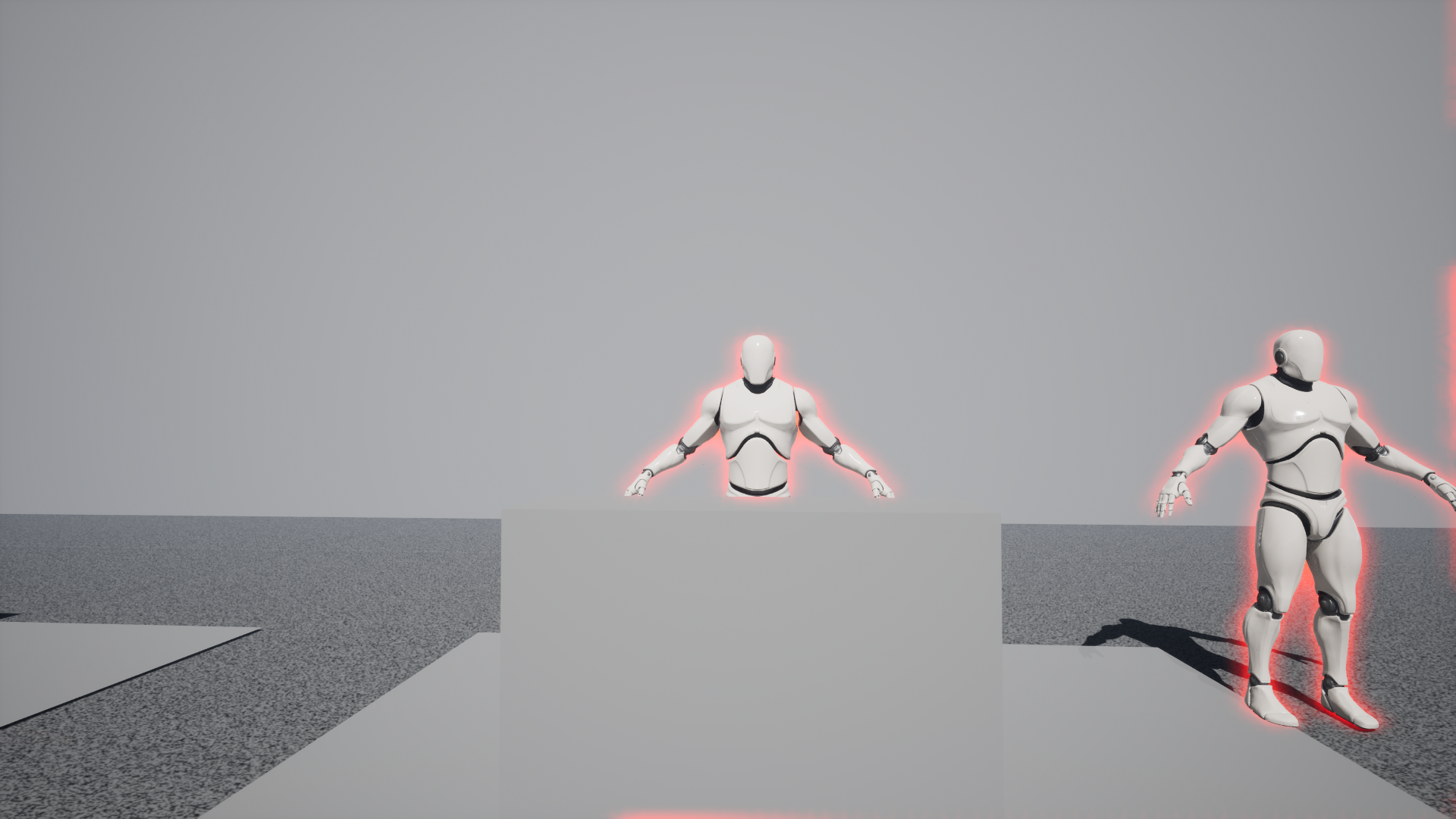

Easily apply a soft outline or glow effect to any mesh or character.

Using a post process effect this effect can be used to highlight key objects or characters.

Showcase and Instructions Video

Instructions:

All that’s needed is a post process volume (either local or set to infinite) and two of the materials found in the pack.

• Make sure your project settings have “Enabled with stencil” set. Search for “Custom Depth-Stencil Pass” in settings and change it.
• Search for “Blendables” or “Materials” in the details of the post process volume and add two new elements to the array and change them to asset

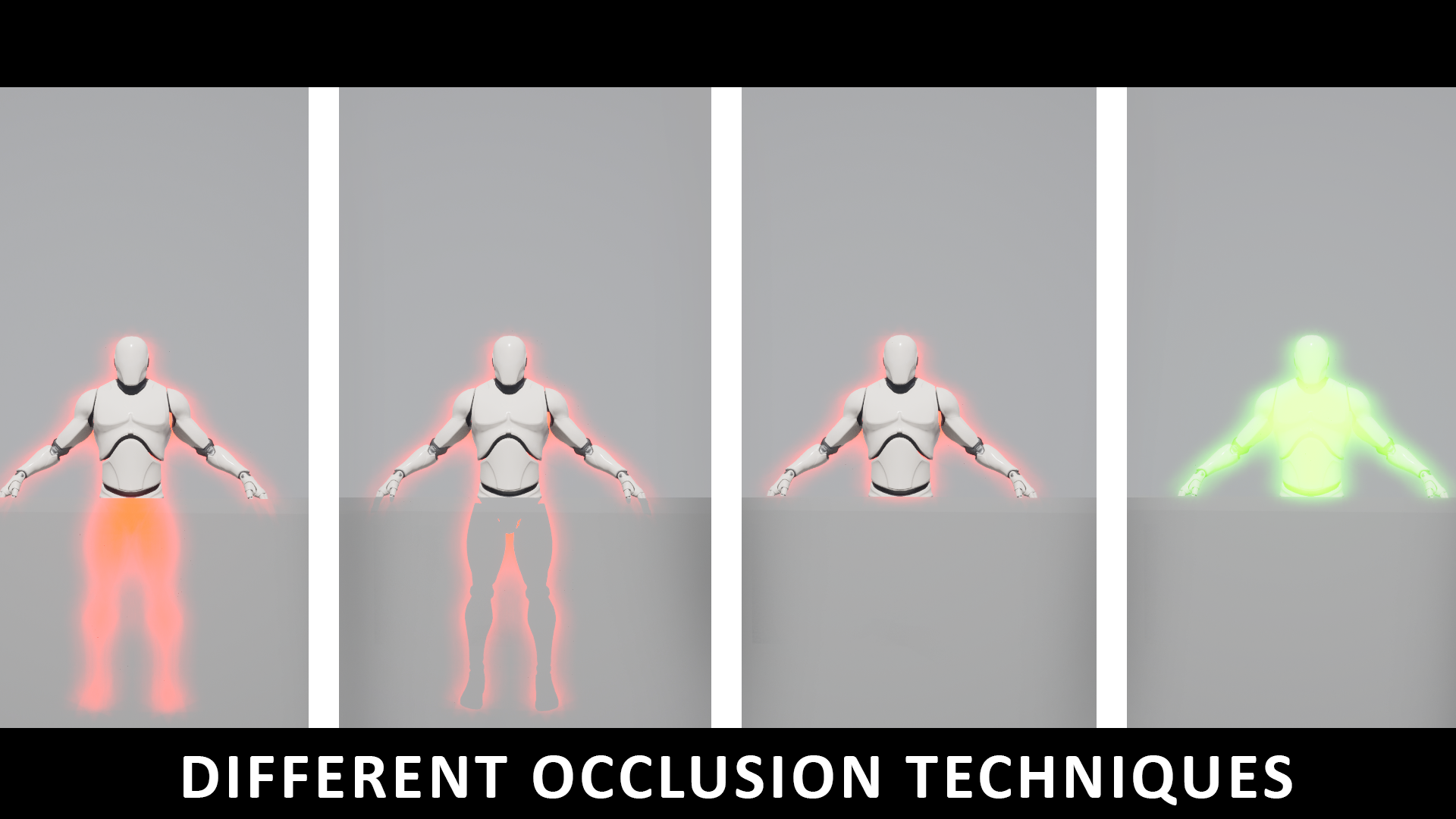

• Then add one of the “PP_OcclusionCheck” Materials and one of the “PP_SoftOutline” materials, there are a few instances to chose from which start with “PPI_”
• Then select any mesh you want and under it’s details – set “Render Custom Depth Pass” as true. Then adjust the Custom Depth Stencil Value to suit the materials you’ve chosen.
• Make sure that your Engine Scalability Settings are set to Epic or Higher for the “Effects” Setting

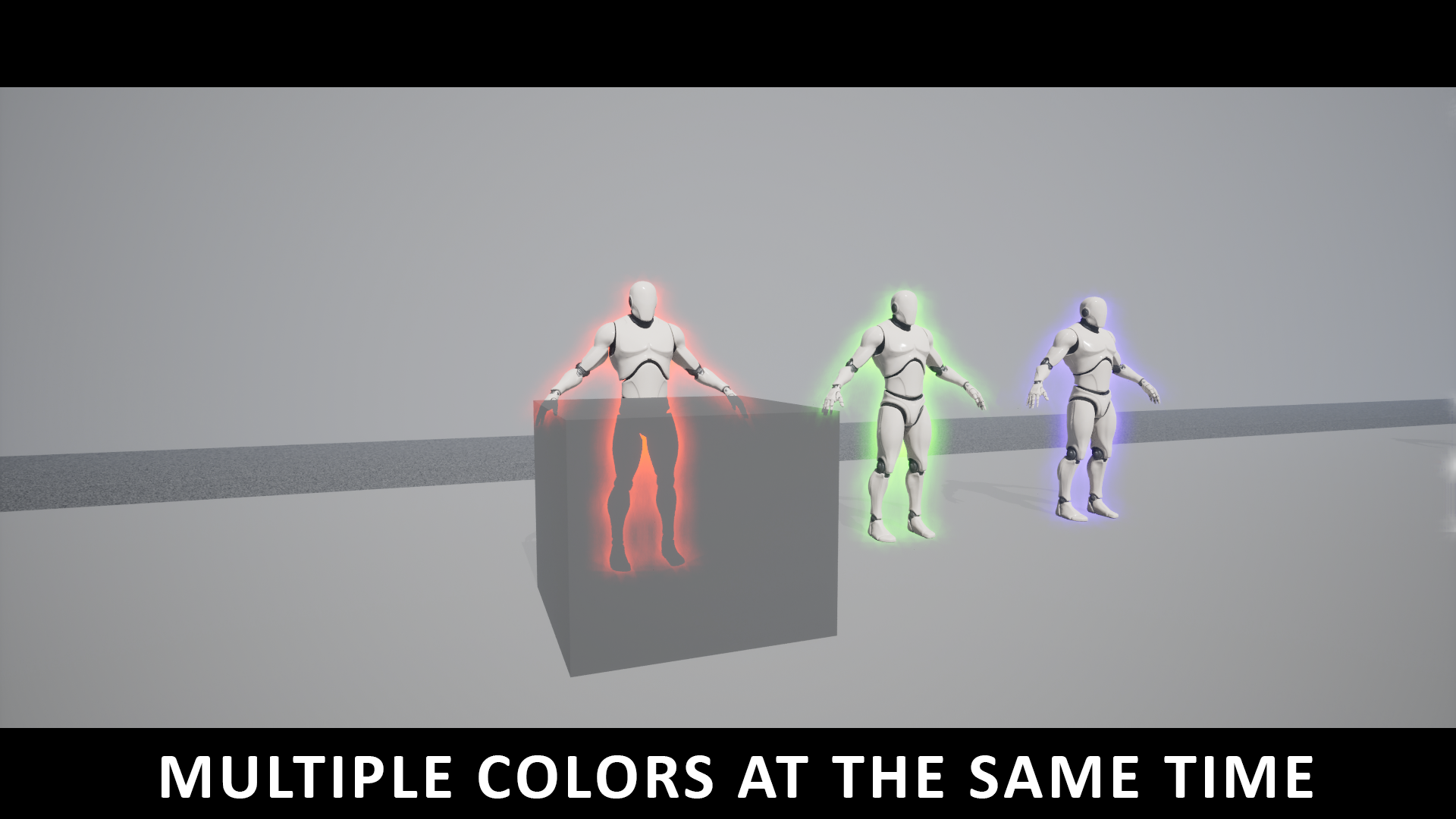

• By default it uses a single color and can fade in intensity between 100-255 set by the Custom Depth Stencil Value. This range can be changed in the material. If using multiple colors the default values go 230, 240 & 250 to change between the 3 set colors. All this can be changed in the material properties
